Prefabricated Cold Form Steel ADU: Innovation in Fire-Resistant Housing

Project Overview

As California faces both a housing crisis and increasing wildfire threats, innovative solutions that address both challenges are in high demand. When the Wong family approached Acornify about adding an Accessory Dwelling Unit (ADU) to their property in a high fire hazard zone in Los Altos Hills, we saw an opportunity to showcase a cutting-edge approach: a prefabricated, two-story ADU constructed with cold-formed steel framing.

The family needed additional living space for aging parents who wanted to maintain independence while being close to family. Given the property's location in a fire-prone area, fire resistance was a top priority, along with speed of construction and minimal disruption to the existing property.

Cold Form Steel Solution

After evaluating various construction methods, we proposed a prefabricated cold-formed steel (CFS) framing system as the ideal solution. Cold-formed steel is created by forming thin sheets of steel at room temperature into structural members that are lightweight yet incredibly strong.

This approach offered several key advantages for the ADU project:

• Superior Fire Resistance

  Cold-formed steel is non-combustible and does not contribute to fire spread. It maintains its structural integrity even under high temperatures, making it ideal for construction in fire-prone areas.

• Factory Prefabrication

  The entire structure was prefabricated in a controlled factory environment, ensuring precise dimensions, minimal waste, and superior quality control compared to on-site construction.

• Rapid Assembly

  Once delivered to the site, the prefabricated components were assembled in just 10 days, dramatically reducing the construction timeline compared to conventional building methods.

• Lightweight Strength

  Despite its light weight, cold-formed steel provides exceptional structural strength, allowing for the two-story design without requiring a massive foundation system.

Design and Features

The 1,200 square foot, two-story ADU was designed to provide comfortable, accessible living space while maximizing fire resistance and energy efficiency:

• First Floor Layout

  The ground floor features an open-concept living area, kitchen, dining space, and a full bathroom with accessibility features. Wide doorways, zero-threshold entries, and grab bars ensure the space is senior-friendly.

• Second Floor Layout

  The upper level includes two bedrooms, a second full bathroom, and a small office nook. A compact stair with a chair lift ensures the upper level remains accessible as the residents age.

• Fire-Resistant Envelope

  The exterior features fiber cement siding, a Class-A fire-rated metal roof, and multi-pane tempered windows in aluminum frames. All vents and openings are protected with ember-resistant screens.

• Energy Efficiency

  The ADU includes high-performance insulation, energy-efficient windows, a mini-split HVAC system, and a small rooftop solar array, resulting in near-zero energy consumption.

Construction Process

The construction process for this prefabricated ADU followed a streamlined sequence that minimized on-site disruption:

1. Design and Engineering (8 weeks): We worked closely with the family to design the ADU, then created detailed construction documents and secured all necessary permits.

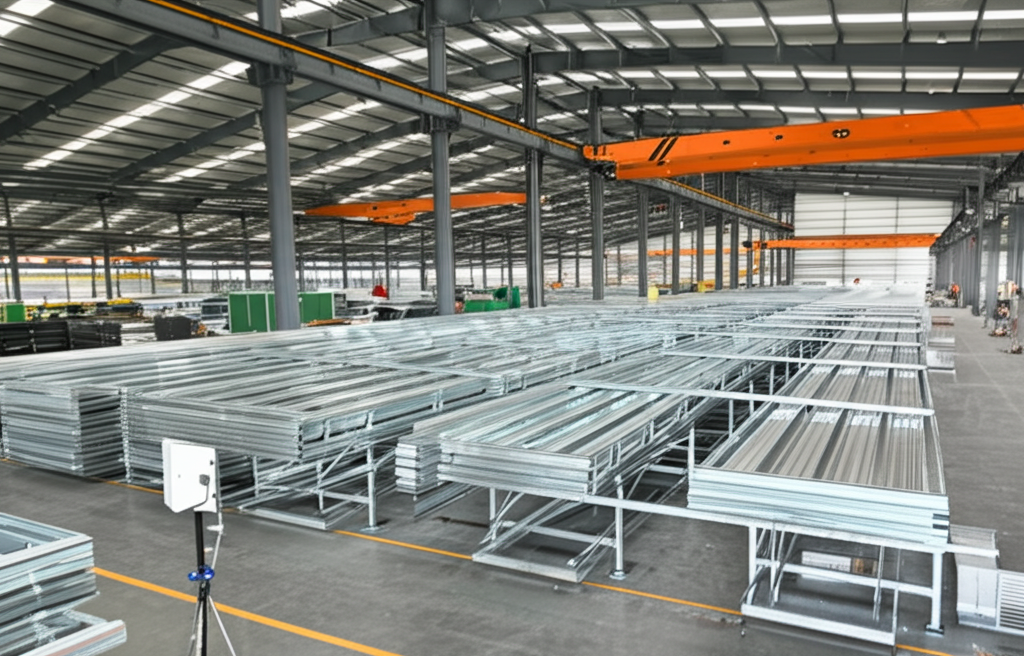

2. Factory Fabrication (6 weeks): While site preparation was underway, the cold-formed steel components were being fabricated in a controlled factory environment, including pre-installed MEP systems.
3. Site Preparation (3 weeks): We prepared the foundation and utility connections while the modules were being fabricated, allowing for parallel processes.

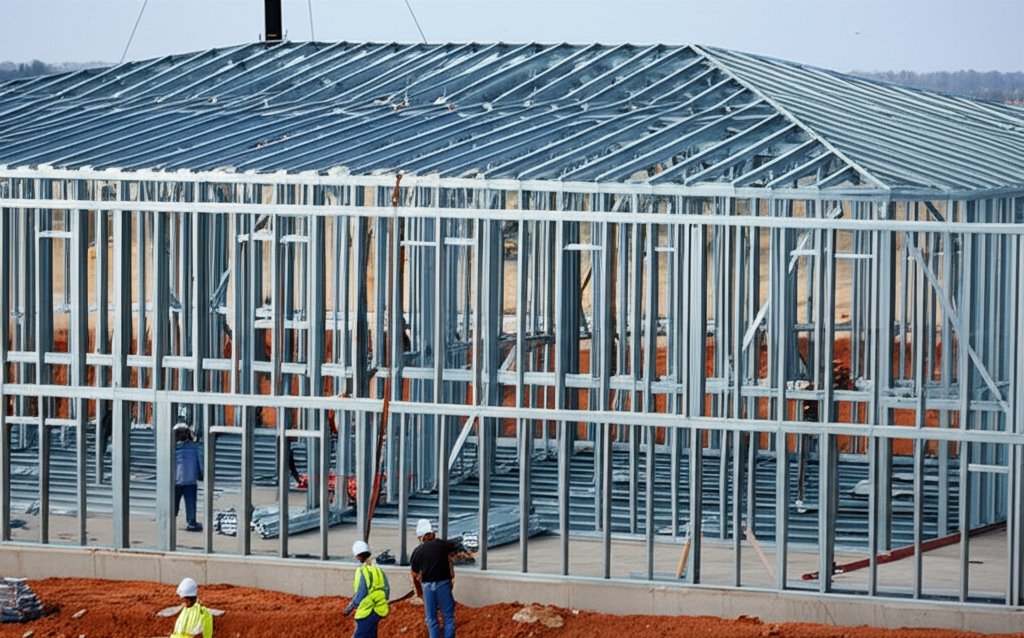

4. Module Delivery and Assembly (10 days): The prefabricated modules were delivered to the site and quickly assembled using a small crane, with connections to utilities completed during this phase.
5. Finishing (3 weeks): Final interior and exterior finishes were applied, systems were tested, and landscaping was completed around the new structure.

The entire process from design to occupancy took just 20 weeks, compared to the 9-12 months typically required for conventional construction of a similar structure.

Results and Impact

The Wong family's parents moved into their new ADU in December 2023, and the project has exceeded expectations in terms of fire safety, comfort, and functionality.

Client Testimonial

"We were amazed by how quickly our ADU came together and how little disruption there was to our property. The prefabricated approach meant that most of the construction happened off-site, and the assembly was incredibly fast. My parents love their new home—it's comfortable, accessible, and we all have peace of mind knowing it's built with fire-resistant materials. The quality of construction is exceptional, and we appreciate the attention to detail in making the space work for aging residents."

Lessons Learned

This project provided valuable insights that we're now applying to other prefabricated and fire-resistant projects:

• Prefabricated cold-formed steel construction offers significant advantages for ADUs in fire-prone areas
• Early coordination between design, engineering, and fabrication teams is essential for successful prefabrication
• Detailed 3D modeling and BIM are crucial for ensuring precise fit of prefabricated components
• Accessibility features can be seamlessly integrated into compact ADU designs with proper planning
• The higher initial cost of steel construction is offset by faster construction, reduced labor, and long-term durability

Conclusion

The Prefabricated Cold Form Steel ADU project demonstrates the potential of innovative construction methods to address multiple challenges simultaneously: housing needs, fire safety, construction speed, and quality control. By leveraging factory prefabrication and the inherent fire resistance of cold-formed steel, we created a comfortable, accessible living space that provides both independence for aging parents and peace of mind for the entire family.

As California continues to face both housing shortages and increasing wildfire threats, this approach offers a promising solution that can be replicated across the state. We're excited to continue refining and expanding our prefabricated steel construction offerings for both ADUs and larger residential projects.
